Zhongcan Machinery Co., Ltd.

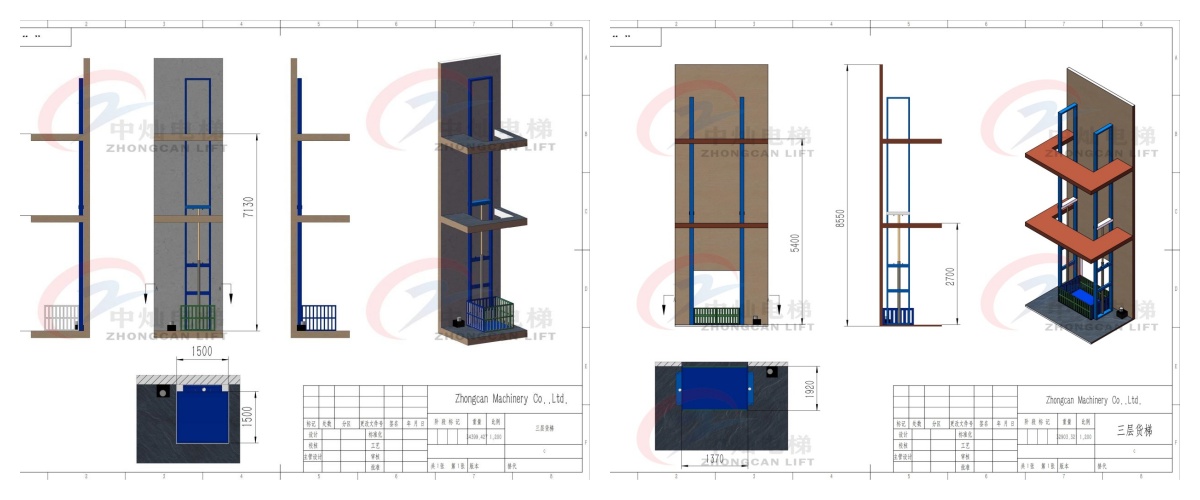

3D Drawing
Product Details
Product Advantages

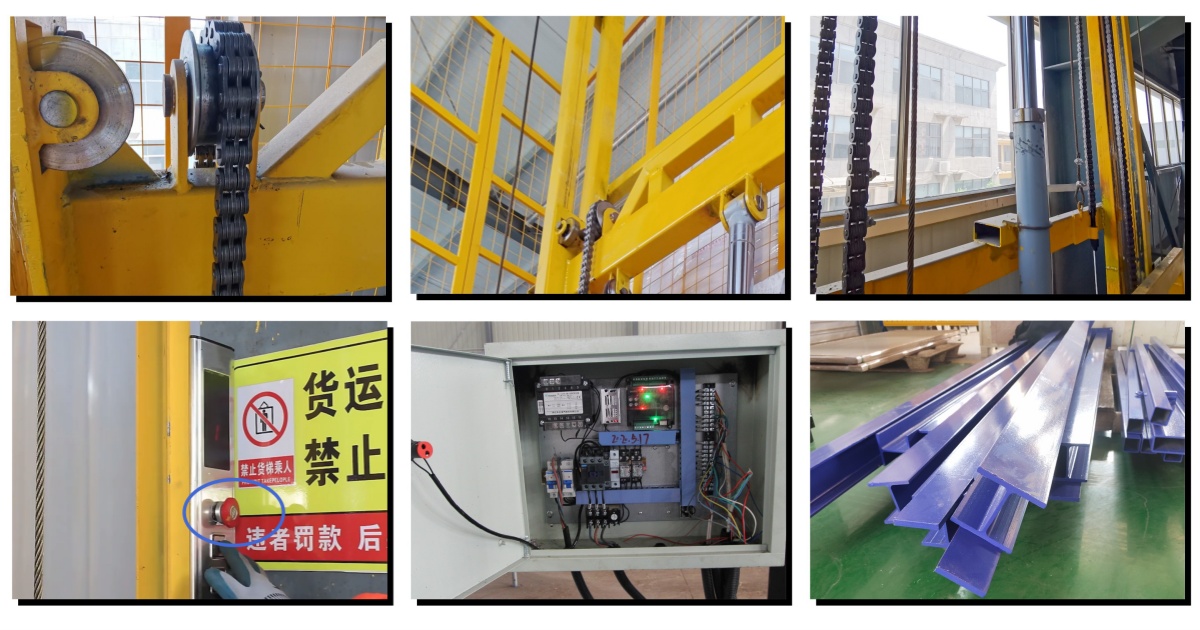

■Chain Wire Line and Cylinder：
Double chain and double wire line to make the lift table very strength and anti-fall. The cylinders are finish grinding and we will supply install guide.
■Explosion-proof Valve：
The oil inlet of the cylinder is equipped with an explosion-proof valve to prevent the sudden rupture of the tubing and the instantaneous drop of the table.
■Manual Emergency Descent Valve：
To prevent accidental power failure, the lifting platform can not fall back to the original state
■Strength Rail：
We use heavy-duty H beam as guide rails for hydraulic vertical goods lift . It is made of Carbon steel Q345B, with 17% more rigidity strength than normal steel. It could serve more than 50 years with enduring peculiarity.

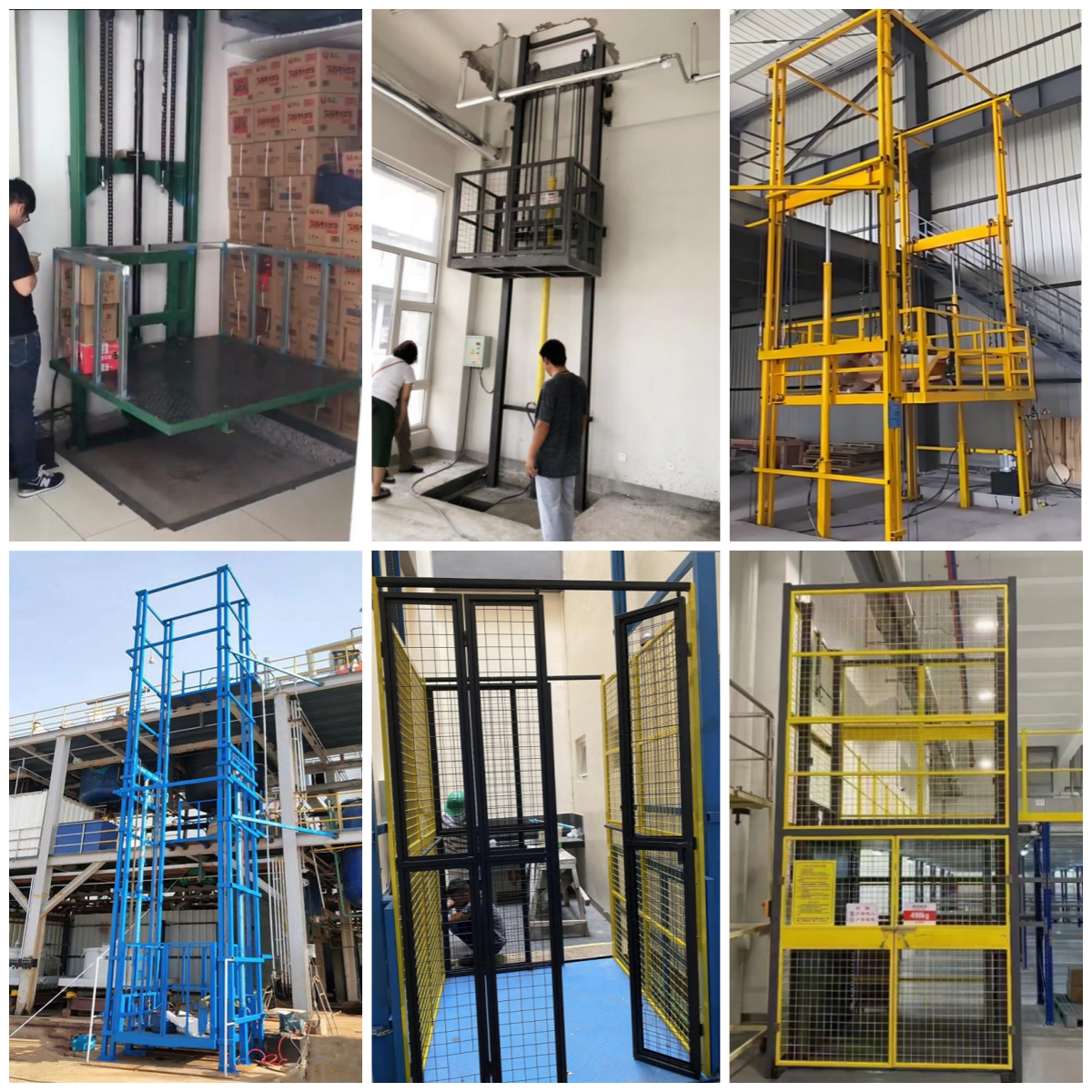

Product Display
